Atlas 9KBPX 9,000 lb Baseplate 2 Post Lift

The Atlas® 9KBPX Baseplate Two-Post Lift is an economical, space-efficient solution designed specifically for low-ceiling garages. With a total column height of 111.5 inches (9 ft 3.5 in), this lift can be installed in garages with ceilings as low as 9 ft 6 in, making it ideal for home garages and small commercial shops.

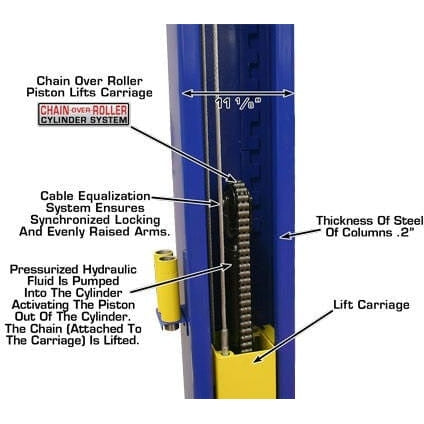

Rated at a 9,000 lb lifting capacity, the 9KBPX features a chain-over-roller design with a spring-loaded Secondary Lock System (SLS) that automatically engages if a chain becomes slack or fails—adding a critical layer of safety. Its dual hydraulic chain-drive cylinders, symmetric arms, and automatic arm restraints make it well-suited for servicing cars, SUVs, and light-duty trucks.
(Not recommended for diesel dually trucks or other large/heavy vehicles.)

Key Features

• 9,000 lb lifting capacity

• Baseplate, open-top design for low-ceiling installations

• Designed for 9′ 3″ column height

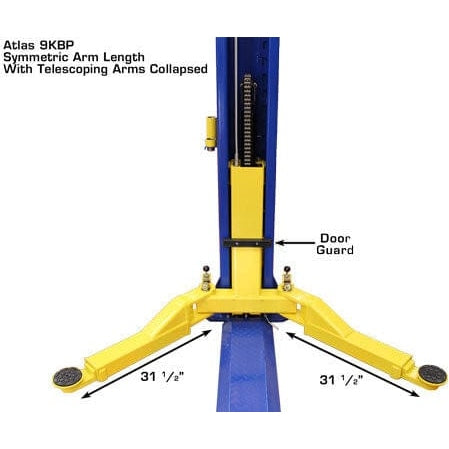

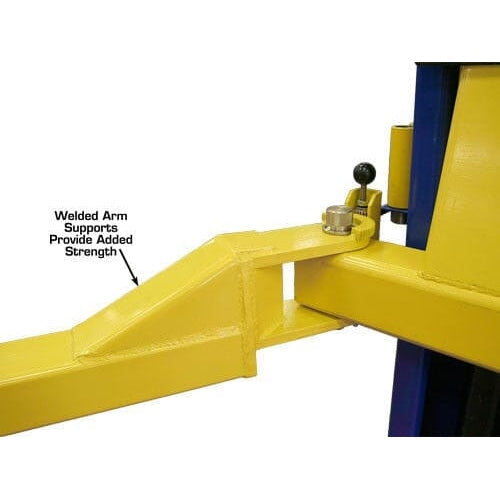

• Symmetric lifting arms

• Dual hydraulic chain-drive cylinders

• Secondary Lock System (SLS) for added chain-failure protection

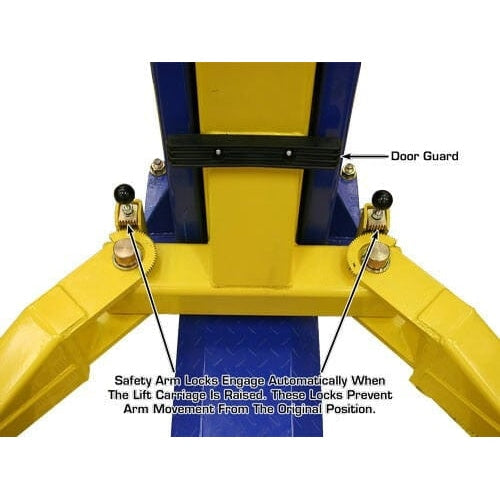

• Automatic arm restraints

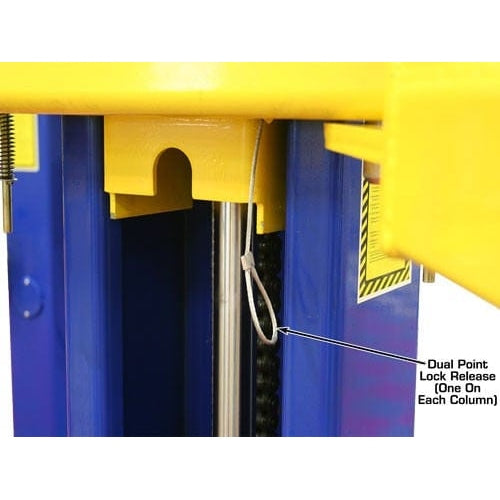

• Dual-point lock release

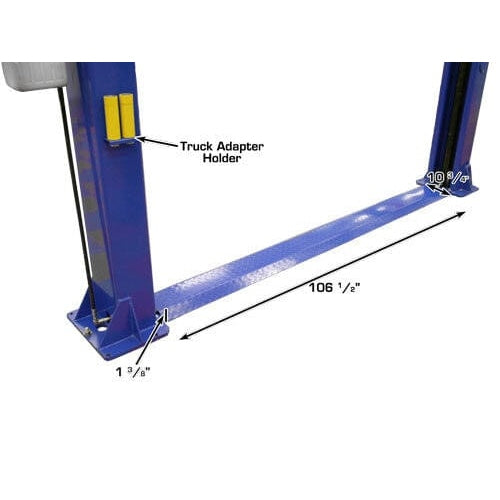

• Free 8-piece truck adapter set

• Mounting hardware included

Specifications

• Capacity: 9,000 lbs

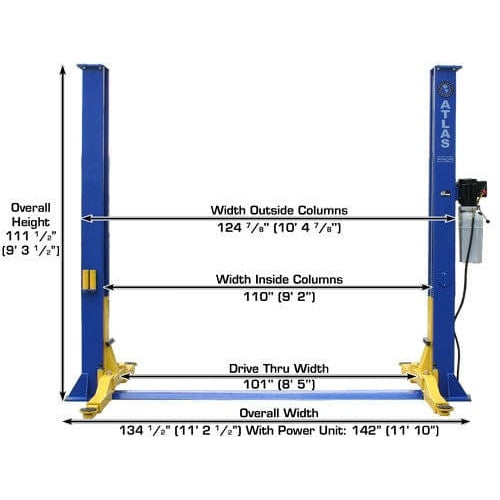

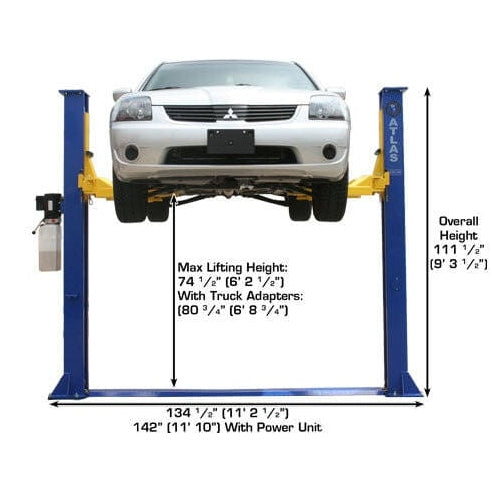

• Overall Height: 111 1/2″ (9′ 3 1/2″)

• Overall Floor Width: 134 1/2″ (11′ 2 1/2″)

• Outside Column to Outside Column: 124 7/8″ (10′ 4 7/8″)

• Inside Column Clearance: 110″ (9′ 2″)

• Drive-Thru Clearance: 101″ (8′ 5″)

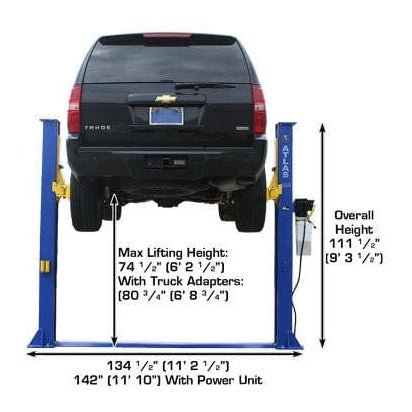

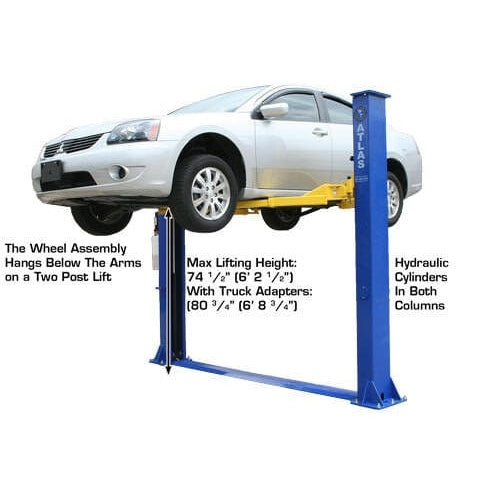

• Maximum Lift Height (No Adapters): 74 1/2″

• Maximum Lift Height (With Adapters): 81″

• Minimum Arm Height: 4″

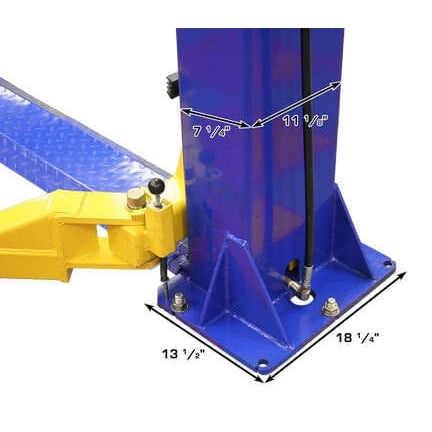

• Column Size: 7 1/4″ × 11″

• Steel Thickness: 5 mm

• Base of Lift: 14 1/4″ × 18 1/4″

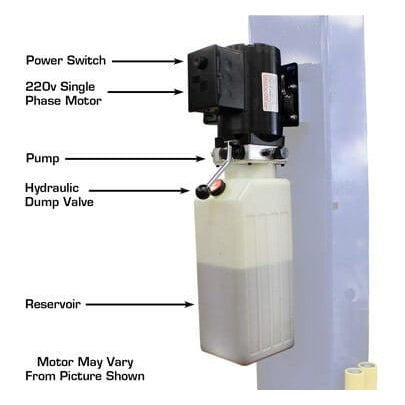

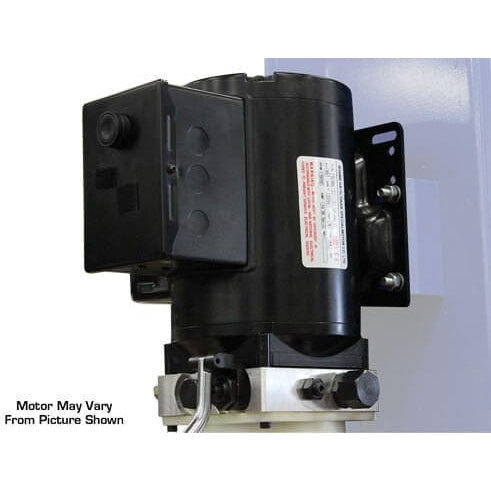

• Motor / Electrical: 220V, Single Phase

  • 30-amp breaker recommended

• Oil Requirement: 3–5 gallons AW32 / AW46 (not included)

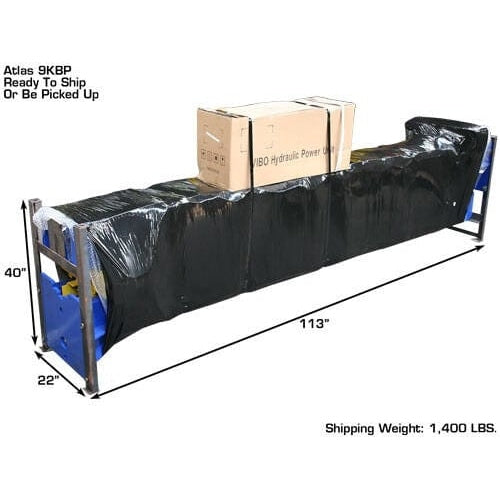

• Shipping Weight: 1,400 lbs

• Adapter Heights Included:

  • 4 × 1.5″

  • 4 × 5″

• Arm Hole / Adapter Peg Size: 1.5″

⚠️ Concrete Requirement

• Minimum concrete thickness: 4 inches

• Concrete strength: 3000 PSI minimum

Failure to meet these requirements may result in unsafe installation or operation.

Warranty

• 2-Year Structural Warranty

• 1-Year Hydraulic Warranty

• Parts only (labor not included)
