Atlas 9KBPX 9,000 lb Baseplate 2 Post Lift w/ LMA Combo

The Atlas® 9KBPX is an economically engineered baseplate two-post lift, specifically designed for low-ceiling garages. With a total column height of 111 ½ inches (9 ft 3 ½ in), this lift can be installed in spaces with ceilings as low as 9 ft 6 in, making it ideal for home garages and small commercial shops.

This chain-over-roller lift is equipped with a spring-loaded Secondary Lock System (SLS) that automatically engages if a chain becomes slack or breaks, adding an extra layer of safety. The lift features dual hydraulic chain-drive cylinders, symmetric arms, and automatic arm restraints, making it a reliable solution for servicing cars, SUVs, and light-duty trucks.
(Not recommended for diesel dually trucks or other large/heavy vehicles.)

Included: Atlas® Lawn Mower Adapter (LMA)

This package includes the Atlas® Lawn Mower Adapter (LMA), designed to expand the lift’s capabilities to safely raise ATVs, UTVs, and lawn mowers. The LMA mounts directly onto the lift arms and is adjustable along the arm length to accommodate various wheelbases.

The lifting capacity of the LMA depends on adapter positioning and vehicle weight distribution—capacity is highest when the platforms are positioned closer to the lift columns.

Features

9KBPX Lift

• 9,000 lb lifting capacity

• Baseplate, open-top design

• Designed for low ceiling clearance (9′ 3 ½″ columns)

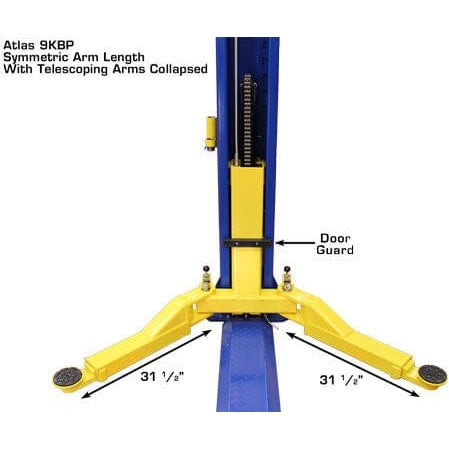

• Symmetric lifting arms

• Dual hydraulic chain-drive cylinders

• Secondary Lock System (SLS)

• Automatic arm restraints

• Dual-point lock release

• Free 8-piece truck adapter set

• Mounting hardware included

• Shipping weight: 1,400 lbs

• Warranty:

  • 2-Year Structural

  • 1-Year Hydraulic

  • Parts only

Lawn Mower Adapter (LMA)

• Adapter system for 2-post lifts

• Includes 4 steel plates and all mounting hardware

• Adjustable to fit various sizes and brands (may not fit all lifts)

• Up to 5,000 lb capacity*

• Can be positioned along lift arms (leveling blocks may be required)

Specifications

Atlas® XH-9KBPX Lift

• Capacity: 9,000 lbs

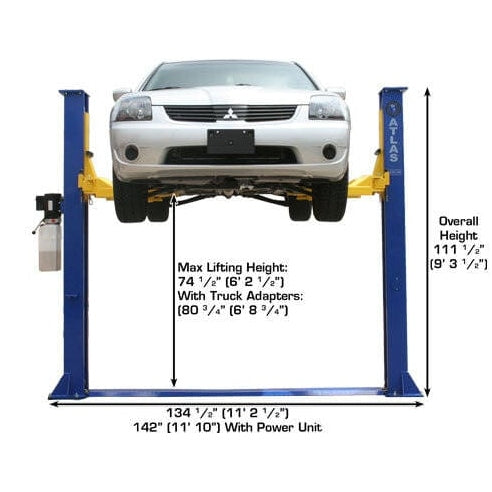

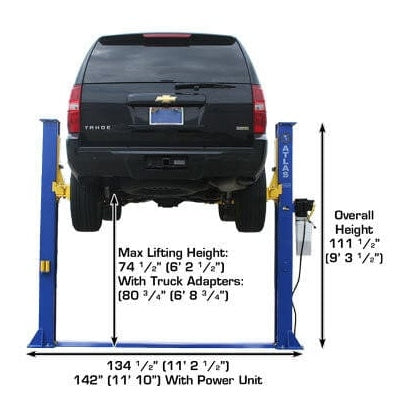

• Overall Height: 111 1/2″ (9′ 3 1/2″)

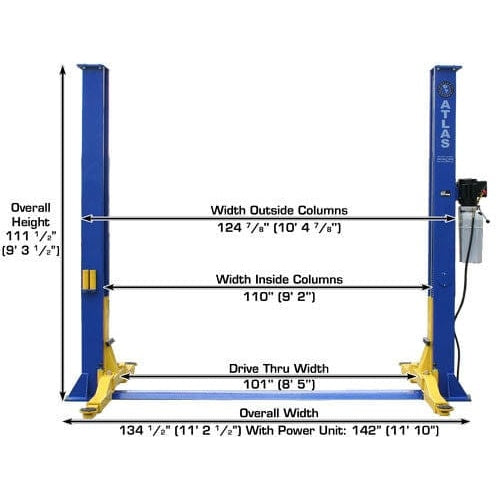

• Overall Floor Width: 134 1/2″ (11′ 2 1/2″)

• Outside Column to Outside Column: 124 7/8″ (10′ 4 7/8″)

• Inside Column Clearance: 110″ (9′ 2″)

• Drive-Thru Clearance: 101″ (8′ 5″)

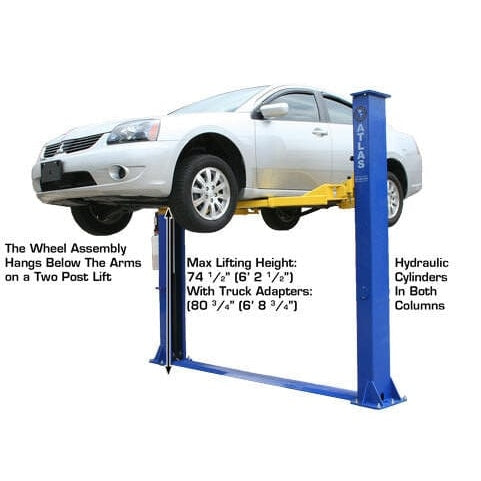

• Max Lift Height (No Adapters): 74 1/2″

• Max Lift Height (With Adapters): 81″

• Minimum Arm Height: 4″

• Column Size: 7 1/4″ × 11″

• Steel Thickness: 5 mm

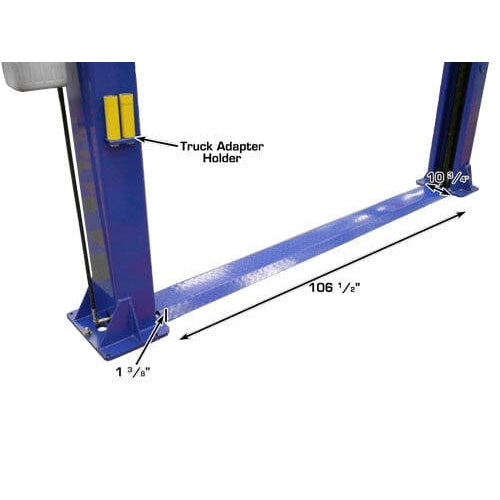

• Base Plate Size: 14 1/4″ × 18 1/4″

• Motor / Electrical: 220V, Single Phase

  • 30-amp breaker recommended

• Oil Requirement: 3–5 gallons AW32 / AW46 (not included)

• Shipping Weight: 1,400 lbs

• Adapter Heights: 4 × 1.5″, 4 × 5″

• Arm Hole / Adapter Peg Size: 1.5″

Concrete Requirement:

• Minimum 4″ thickness

• 3000 PSI concrete rating required

Atlas® Lawn Mower Adapter (LMA)

• Capacity: Up to 5,000 lbs*

• Adjustable Width: 8′ 11″

• Wheelbase Range: 32″ – 90″**

• Wheel Well Width: 12″

• Steel Thickness: 1/4″ (2-gauge)

• Shipping Weight: 600 lbs

* Capacity varies based on lift type, adapter position, and vehicle balance
** Blocks or shims may be required for proper leveling

Note: LMA consists of two wheel platforms. Lift not included when sold separately.

Documents

• Atlas® 9KBPX Installation & Operation Manual (PDF)

• Atlas® 9KBPX Cylinder Bleeding Procedure
  (Must be completed immediately after installation)
