Atlas BP8000 8,000 lb Baseplate 2 Post Lift

The Atlas® BP8000 Baseplate Two-Post Lift is specifically engineered for low-ceiling garages, making it an excellent choice for home garages and light professional use. With a total column height of 108 inches (9 feet), this lift can be installed in spaces with ceilings as low as 9 ft 3 in, while still delivering the core features found on larger, higher-priced lifts.

Rated at 8,000 lbs lifting capacity, the BP8000 includes super-symmetric arms, a single-point lock release, and a 12-piece truck adapter set, offering flexibility and safety for a wide range of vehicles. This is a hobbyist-grade lift, ideal for enthusiasts, and not intended for heavy commercial service.

Key Features

• 8,000 lb lifting capacity

• Hobbyist-grade lift (not for heavy commercial use)

• Baseplate, open-top design for low-ceiling installations

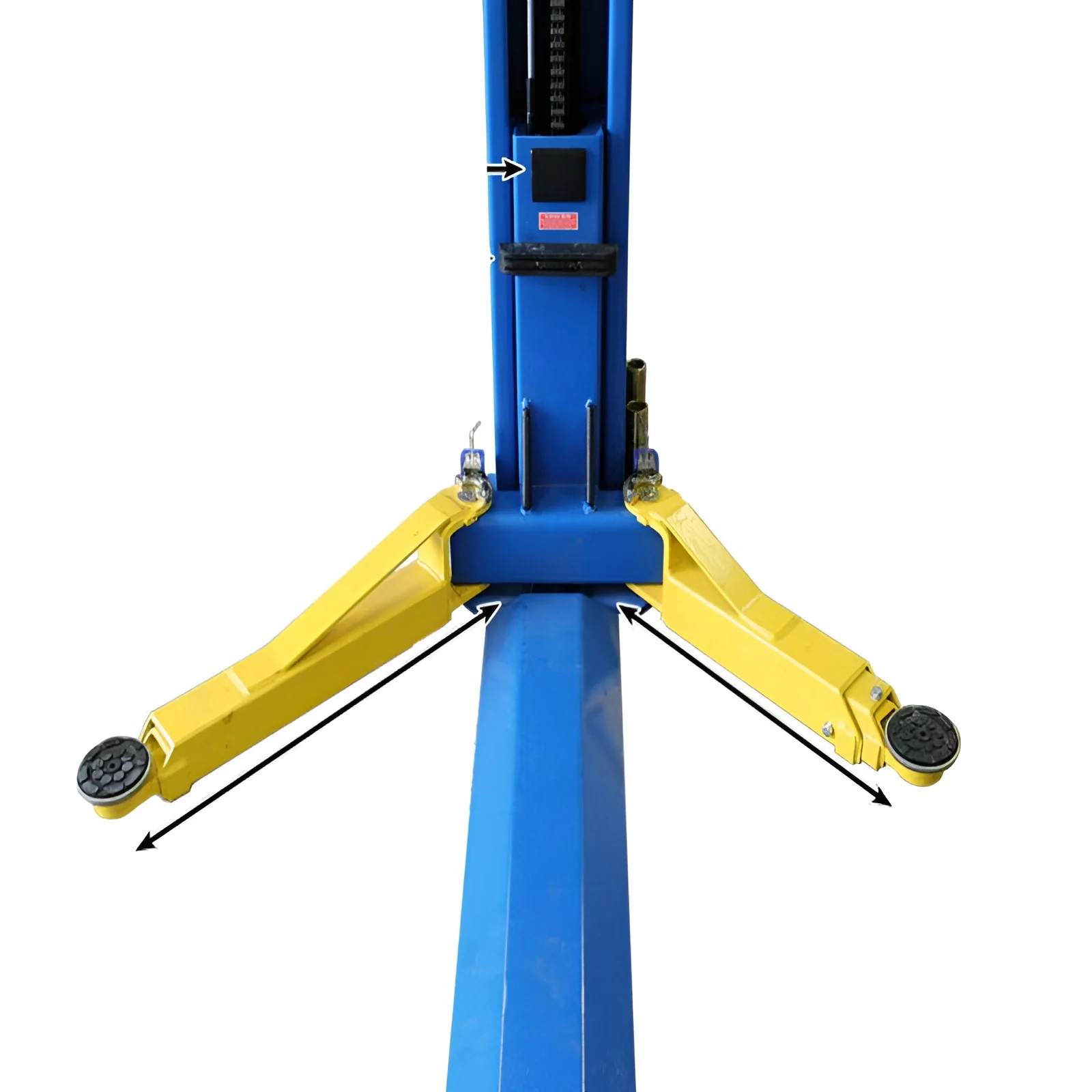

• 3-stage front arms / 2-stage rear arms

• Automatic arm restraints

• Single-point lock release

• Double safety lock system

• Dual hydraulic chain-drive cylinders

• Free 12-piece truck adapter set

• Mounting hardware included

• CE-style safety engineering (Atlas standard)

Specifications

• Capacity: 8,000 lbs

• Overall Height: 108″ (9’)

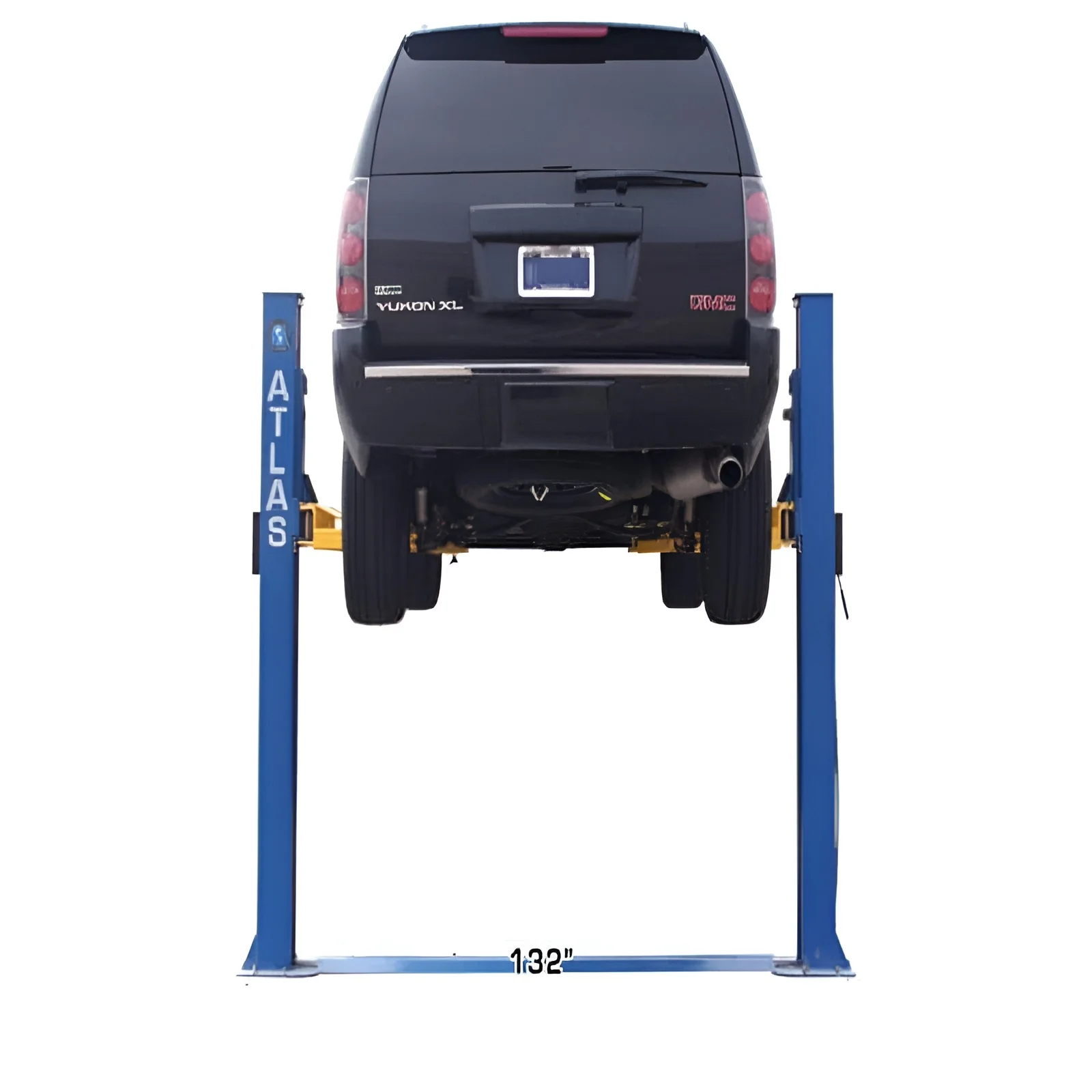

• Overall Floor Width: 132″ (11’)

• Outside Column to Outside Column: 124″ (10’ 4”)

• Inside Column Clearance: 109 1/8″ (9’ 1 1/8”)

• Drive-Thru Clearance: 99″ (8’ 3”)

• Maximum Lift Height (No Adapters): 75 1/2″

• Maximum Lift Height (With Adapters): 86 1/2″

• Minimum Arm Height: 4″

• Column Size: 7 1/4″ × 11″

• Steel Thickness: 6 mm

• Base of Lift: 17 1/2″ × 17 3/4″

• Motor / Electrical: 220V, Single Phase

  • 30-amp breaker recommended

• Oil Requirement: 3–5 gallons AW32 / AW46 (not included)

• Shipping Weight: 1,300 lbs

• Adapter Heights Included:

  • 4 × 2″

  • 4 × 3″

  • 4 × 6″

• Arm Hole / Adapter Peg Size: 1.5″

⚠️ Concrete Requirement

• Minimum concrete thickness: 4 inches

• Concrete rating: 3000 PSI minimum

Failure to meet these requirements may result in unsafe operation.

Warranty

• 5-Year Warranty on structural components

• 2-Year Warranty on hydraulic components

• Parts only (labor not included)

Documents

• Atlas® BP8000 Installation & Operation Manual (PDF)

• Atlas® BP8000 Cylinder Bleeding Procedure
  (Must be performed immediately after installation)
