iDEAL Elec-Hydra UTV Lift w/Integrated Motor & Retractable Ramp

Product Description

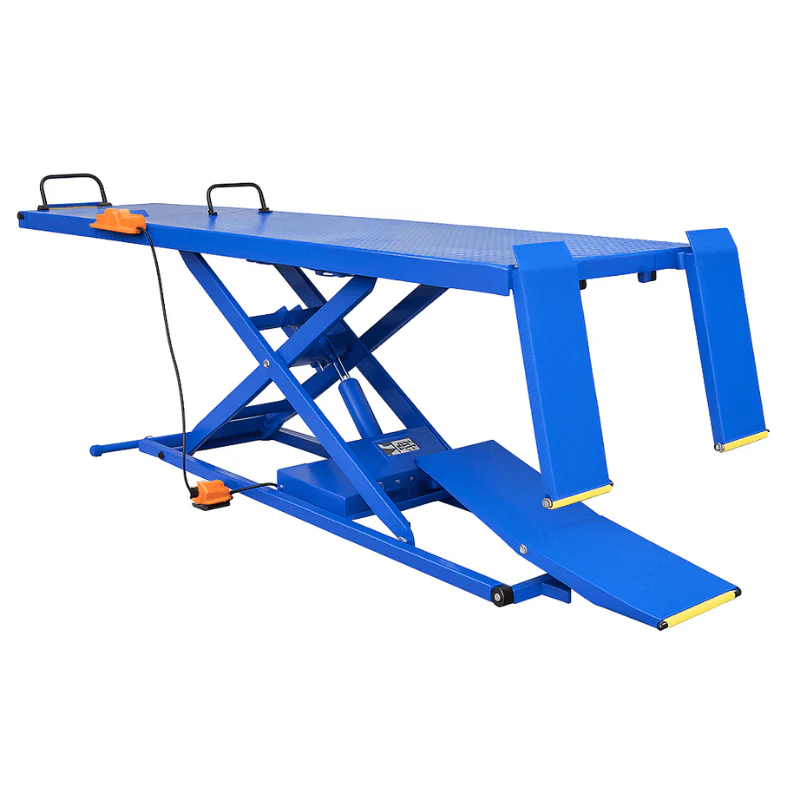

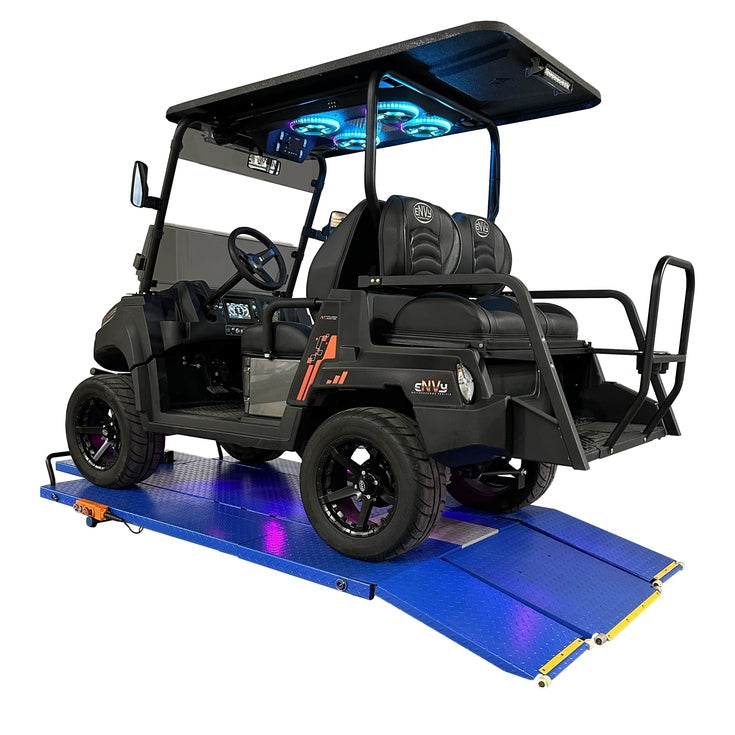

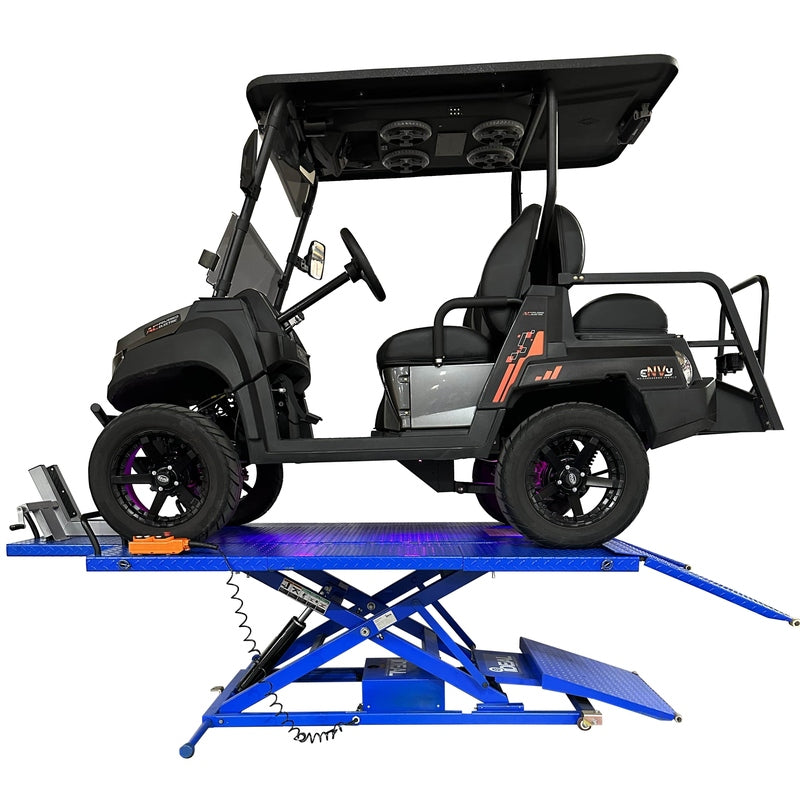

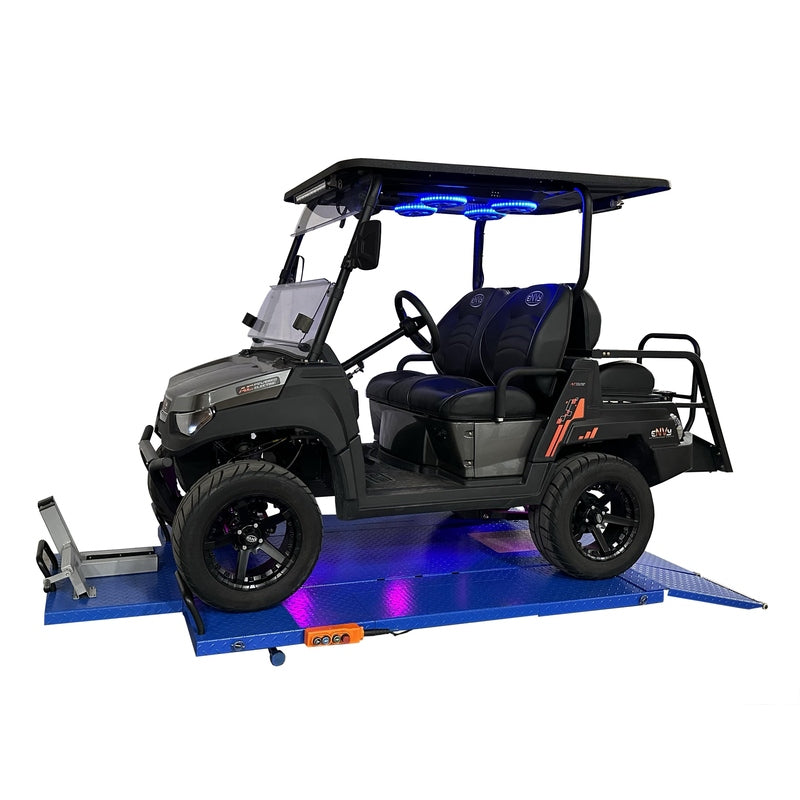

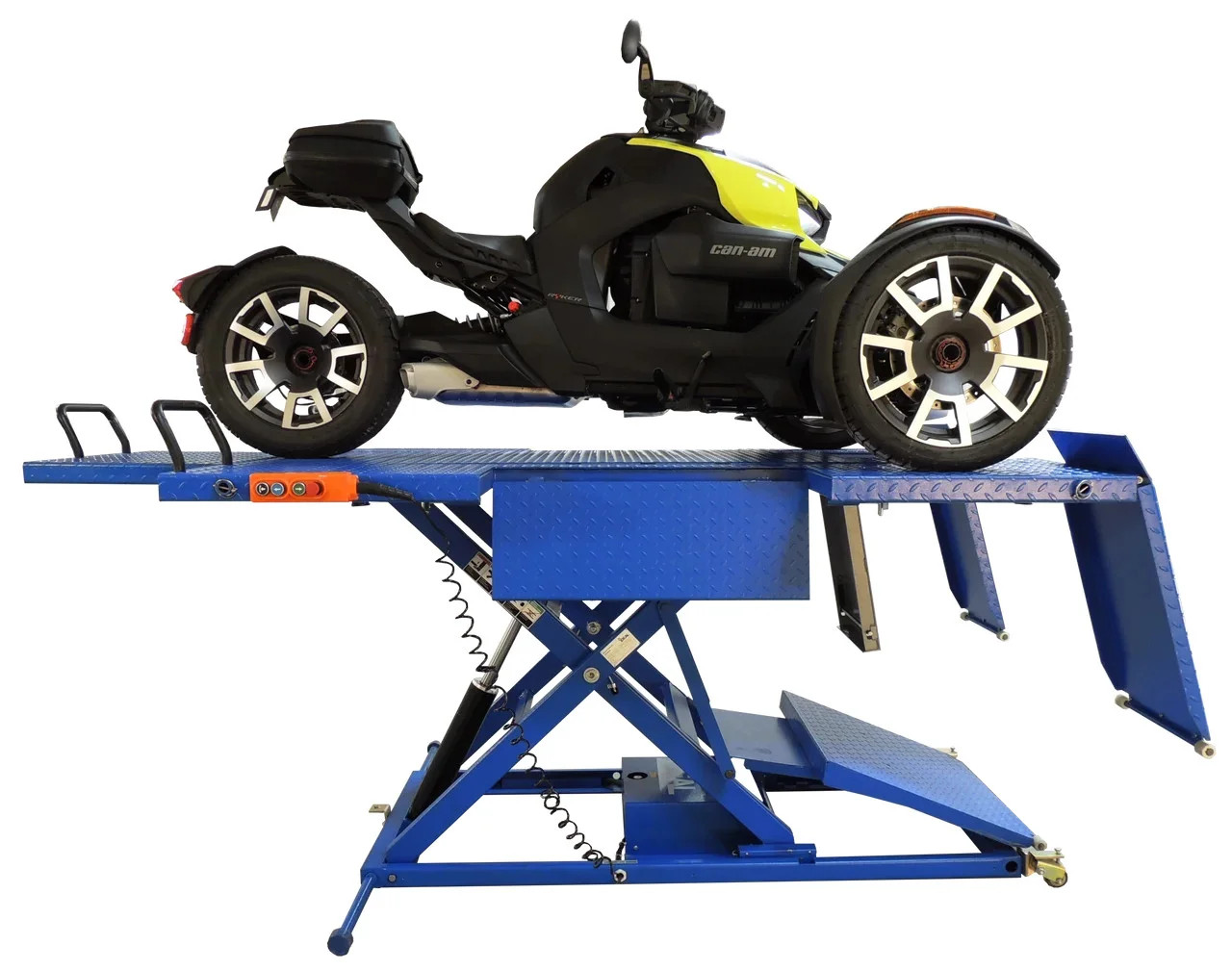

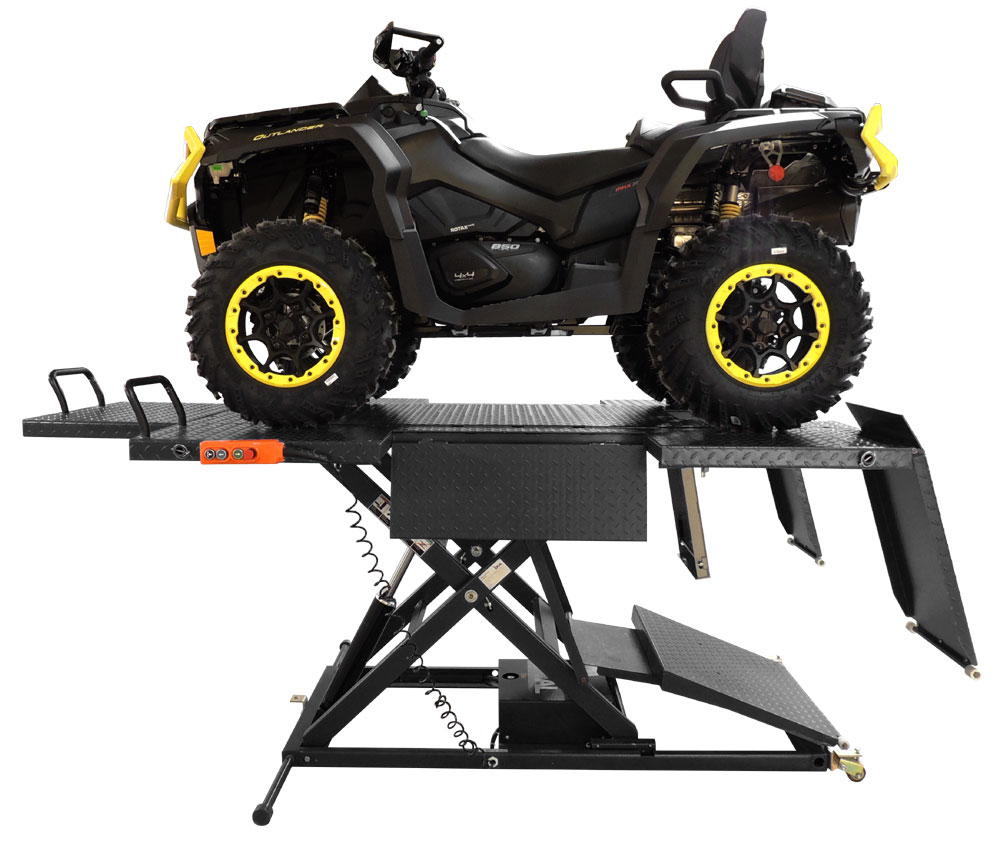

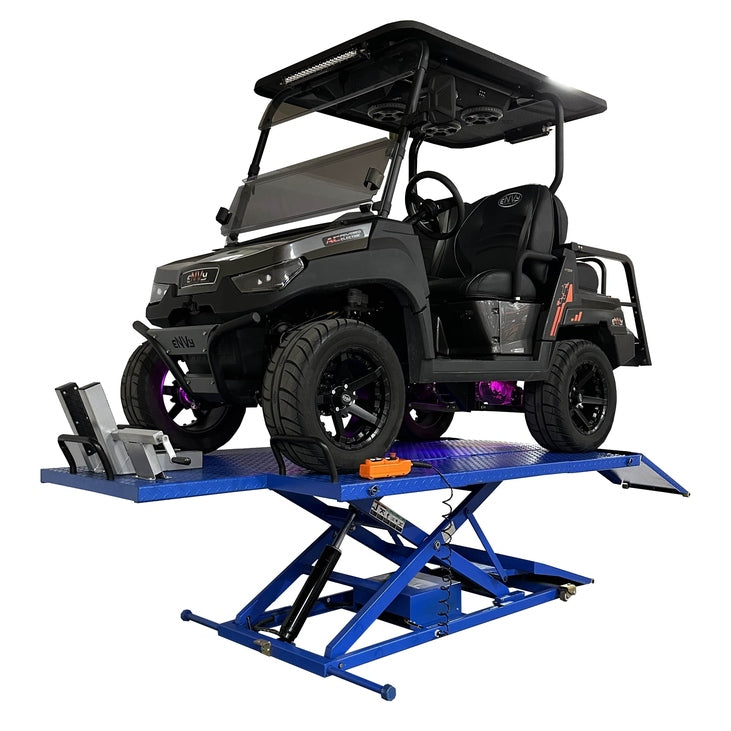

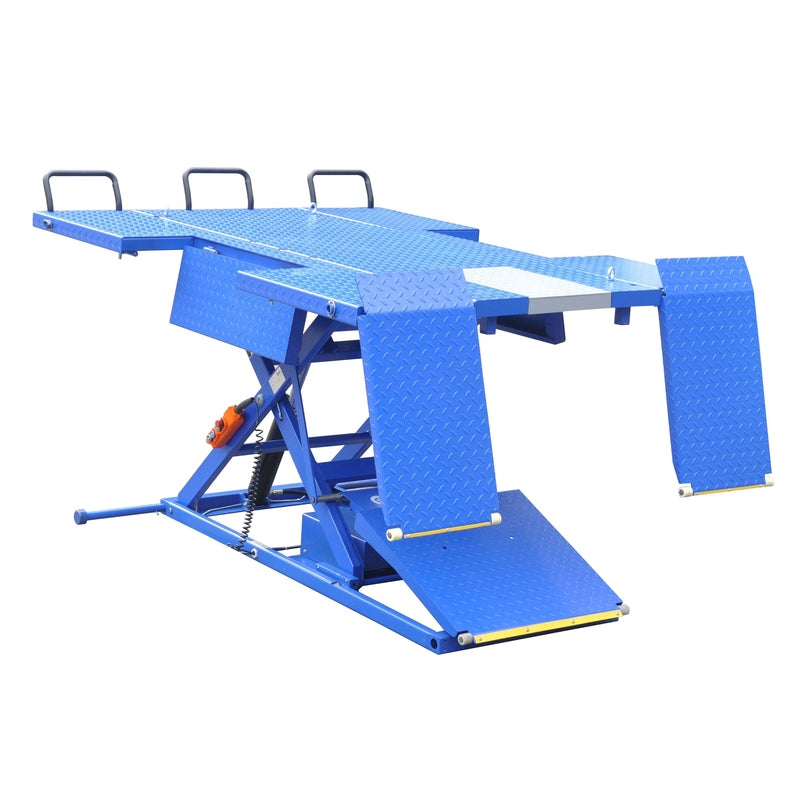

The iDEAL® U-2200-IEH UTV Lift is a powerful and versatile service lift engineered to handle UTVs, ATVs, trikes, and motorcycles with ease. Rated at 2,200 lbs, it features a wide 65″ platform and removable UTV side extensions with an integrated fold-down rear service panel, improving technician access and productivity.

An integrated 110V electric-hydraulic power unit delivers smooth, fast, and safe lifting. Operation is simplified with a hand-held control pendant that raises, lowers into the locks, and lowers—eliminating the need to manually disengage safety latches. With a retractable ramp system and multiple lock positions, this lift is an excellent all-around solution for powersports service.

Note: Wheel chock and vise are sold separately.

Key Features

• 2,200 lb lifting capacity

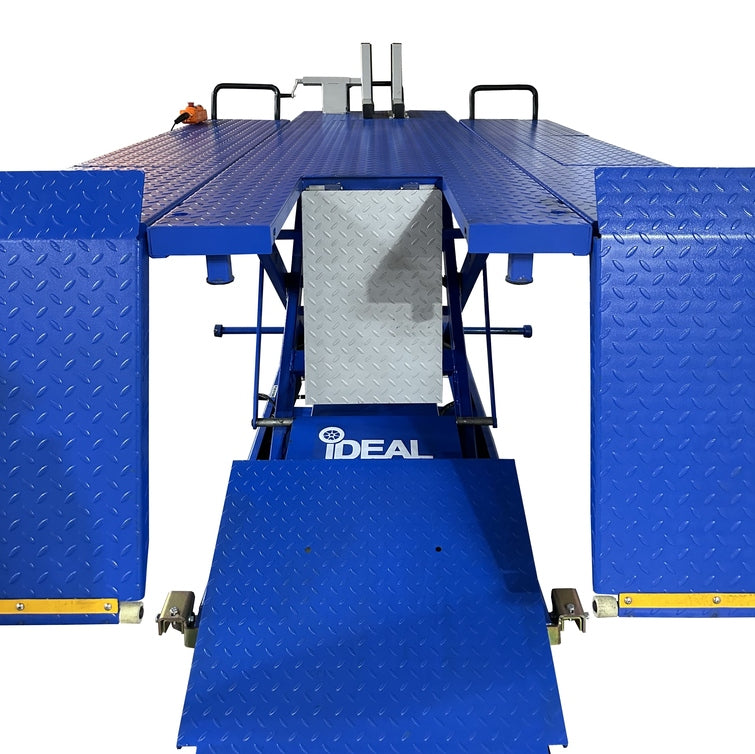

• NEW retractable ramp system

• 47″ lifting rise

• 110V integrated electric/hydraulic power unit

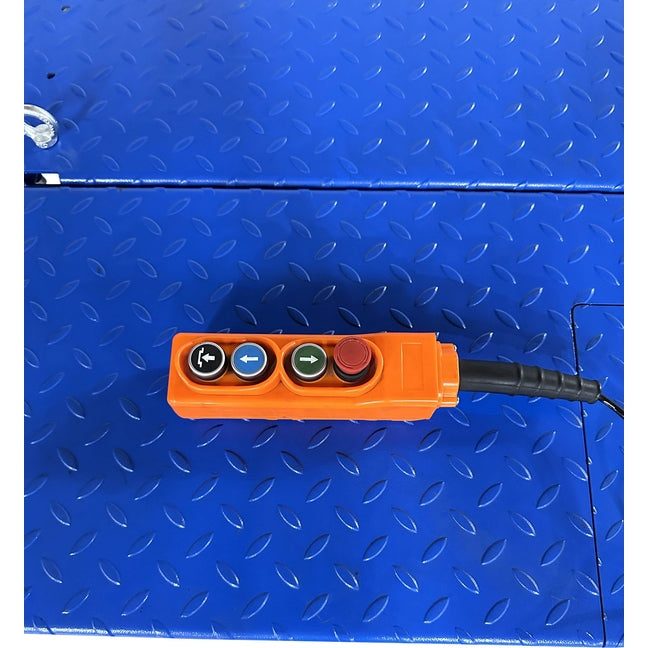

• Single-point hand-held control pendant (raise, lock, lower)

• Six locking positions

• Extended 27.5″ full-width approach ramp

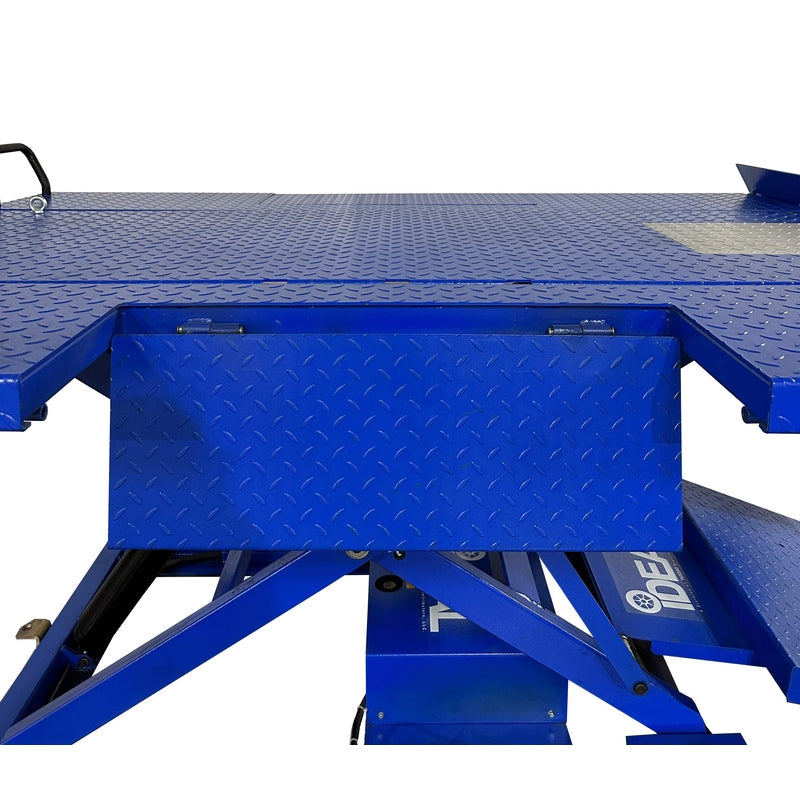

• Rear drop-down service panel

• Wheel stops included

• Large table: 65″ × 88.6″

• Ideal for UTVs, ATVs, trikes, and motorcycles

Specifications

• Capacity: 2,200 lbs

• Maximum Lift Height: 47.2″

• Minimum Height: 7″

• Platform Width: 65″

• Platform Length: 88.6″

• Overall Width (incl. stabilizer bar): 65″

• Overall Length (incl. ramp): 116.5″

• Power Supply: 110V / 60Hz / Single Phase / 18A

• Rise Time: 30 seconds

• Descent Time: 30 seconds

Accessories: Wheel chock and vise sold separately
